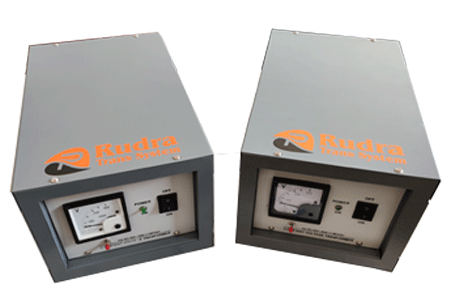

Constant Voltage Transformer


In a RUDRA CVT, the AC mains power the input winding which is widely separated physically from the isolated output winding. The input winding normally runs at very moderate Flux Linkage levels. The output winding exhibits an intrinsic energy storage characteristic and this energy storage operates in conjunction with mains capacitor to produce self-generated AC flux field which is indirectly excited form the input winding.


RUDRA Constant Voltage Transformers ensure total protection of your sensitive electronic equipment by allowing only stabilized and pure sine wave power.


Fields of Application:-


  • Embroidery machines
  • Signaling instruments
  • Signaling instruments
  • Epabx systems
  • Computers & peripherals
  • Transmitters
  • Scientific instruments
  • Laboratory equipments
  • Photo flash equipments

Recommendations :-


  • Keep magnetic storage and display devices like Diskettes, Spools, Monitors etc. away from the CVT.
  • Switch on the CVT before switching ON the attached peripherals and while switching off, switch OFF attached peripherals first and then the CVT.
  • Avoid using the CVT for high inductive loads. * Check frequency before using the CVT with a generator. Recommended frequency: 50+ 1Hz
  • Switch OFF the CVT when not in use.
Ultra Isolation Transformer

Technical Specifications


Phase Single Phase
Input Voltage 180V-260V (other choices on request)
Line Frequency 50Hz
Output Voltage 220/230 + 1% & 110+ %
Output Step load response 2 cycle (30 to 40 millisecond)
Efficiency 90% (approx) under full load conditions
Output Waveform Sinewave
Waveform Distortion 5 % (approx) under full load conditions
Load Power Factor 0.75% lag to 0.9% lead
Ambient temperature 5 C to 50 C
Transformer Type Ferro-Resonant
Capacity 50VA, 100VA, 150VA, 250VA, up-to 5KVA
